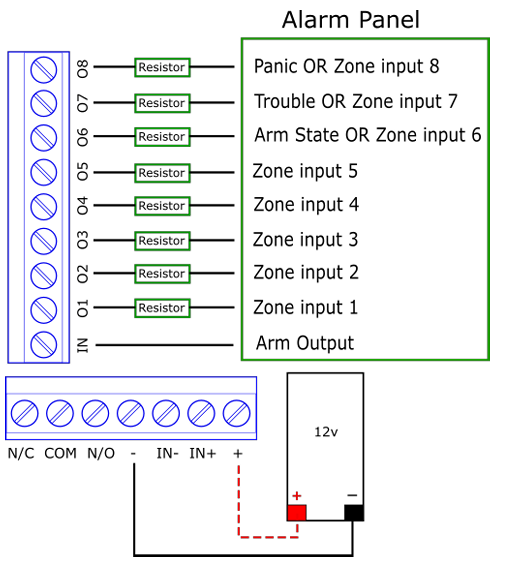

The outputs on the Interface unit are connected to the alarm system panel inputs. When the wireless sensor sends an alarm signal, the Interface unit processes the signal and opens (by default, the output can be also set for closing) the wire output corresponding to the zone number of the sensor.

If it is mentioned that the alarm panel zone must have high resistance between the Interface unit output and the alarm panel input zone, the resistor required by the alarm panel must be placed with serial connection.

The “IN” input on the Interface unit must be connected to an output on the alarm panel to signal the Arm / Disarm status of the alarm system. The “IN” input can be programmed to Arm on either a Low or High signal. The input must be set to latch mode (default).
