Mounting the sensor

Mount the Beams 0.8 – 1.2 meters from the level ground, using the supplied fasteners and optional bracket.
KwêBeam sensors can be mounted to face different directions:
  1. 45° facing left or right using bracket
  2. 22.5° facing left or right using bracket
  3. 0° facing straight, no bracket
Warning
Do not remove the rubber sponge at the back of the sensor when mounting the sensor.
Info
The beam detects moving heat sources, therefore it is recommended NOT to face the sensor to warm objects in close vicinity. E.g. A warm wall with moving plants between the sensor & the wall can cause false triggers. The reverse side of air conditioners, moving vehicles or sunlight reflections are also heat sources that can trigger the sensor.

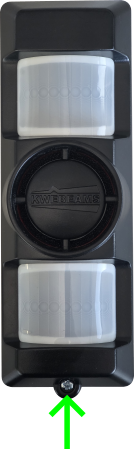

 Remove lock screw at the bottom of sensor.

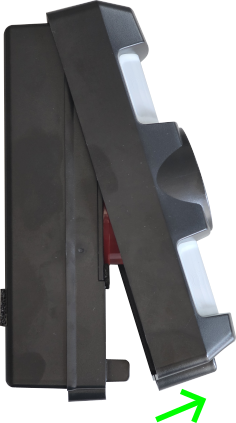

Pull the bottom of the face cover to open.









 Pull internal unit from back box.

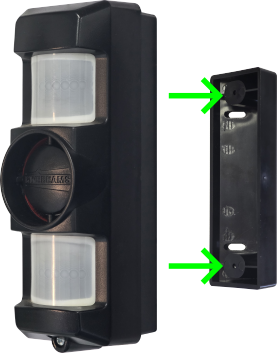

Mount the back box directly to the wall if you don't need the bracket.  Mark mounting holes, drill 6mm holes & secure with provided screws.

Using the Angle bracket to mount the Beam:


Place the desired angle against the wall.
If you need 22.5°, mount the 22.5° marking against the wall.
If you need 45°, mount the 45° marking against the wall.
Rotate backet to mount the Sensor in opposite direction.
Mark mounting holes, drill 6mm holes & secure with provided screws.



 With the bracket mounted against the wall.

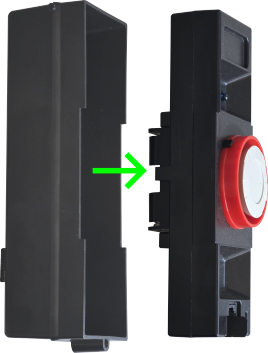

 Mount the Sensor to the bracket.
