Installing a Siren or LED spot light

Installing a Siren or LED spot light

The relay on the module can be used to connect additional sirens, lights etc. to the KwêBeam system. The relay will activate when an Alarm signal is received while the system is armed. A Panic signal will also trigger the relay if O8 is set NOT to trigger on a Panic signal. The “ON” time delay of the relay can be set from 1 second to 5 minutes.

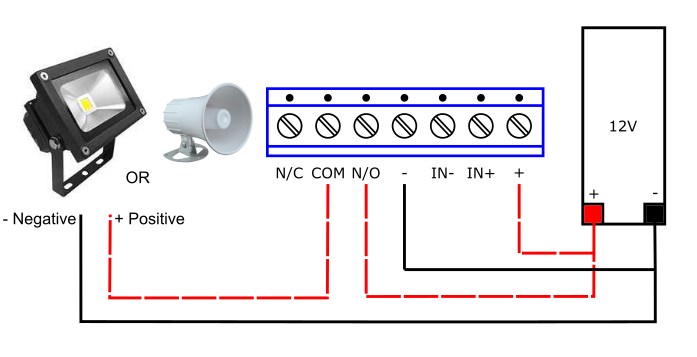

  1. 12VDC

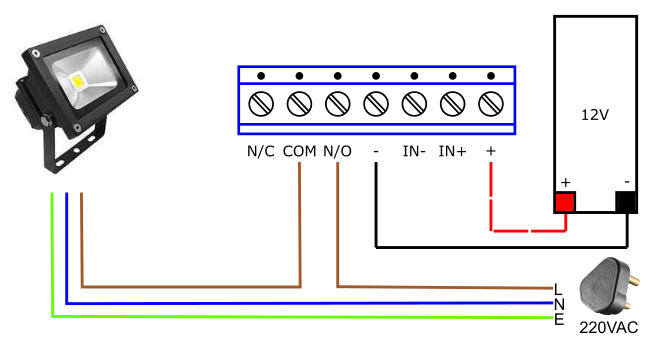

  2. 220VAC
