Detection area

Detection area

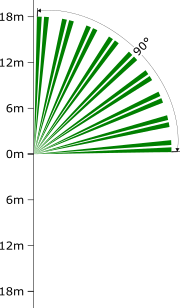

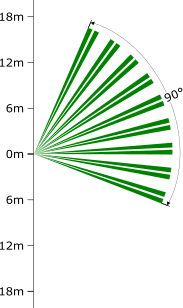

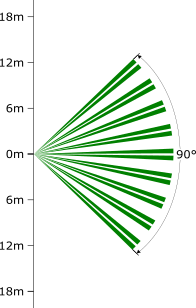

Top View
  1. 45° Bracket Mount

  1. 22° Bracket Mount

  1. 0° Mount (No Bracket)

Side View
​


Ground levels

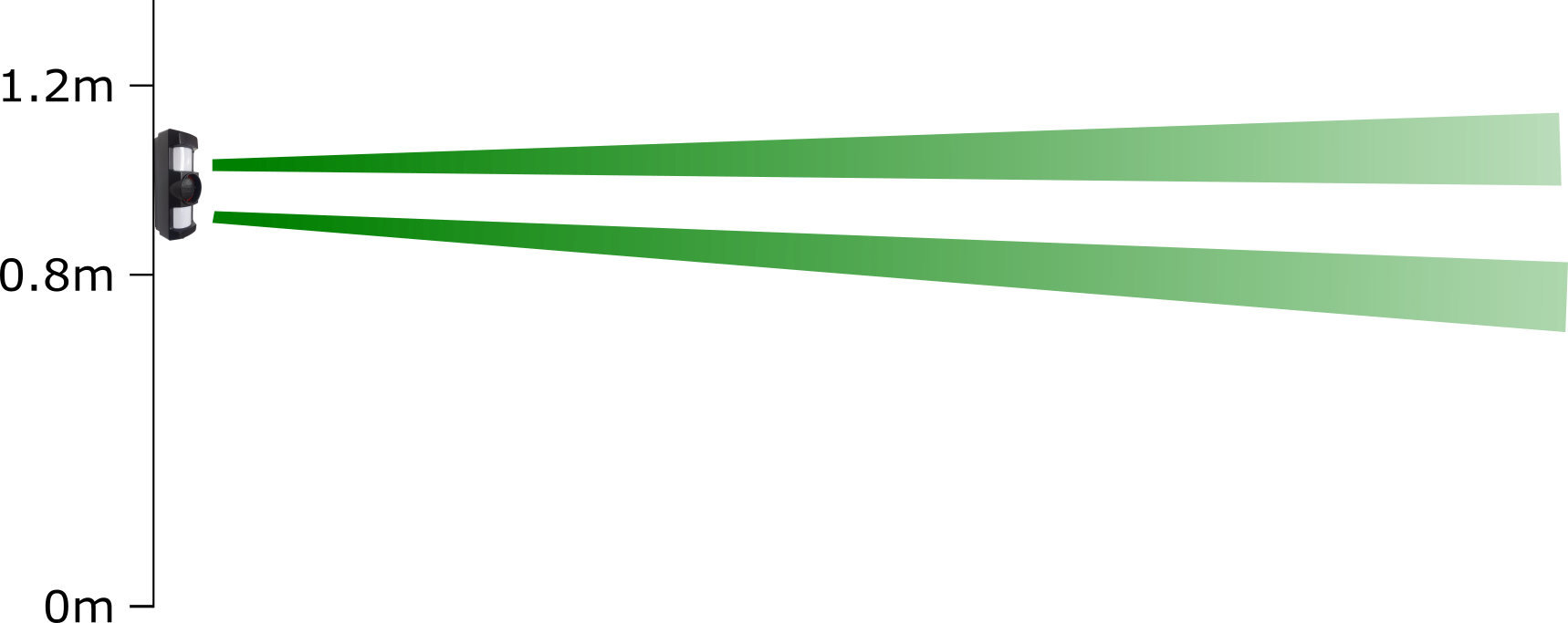

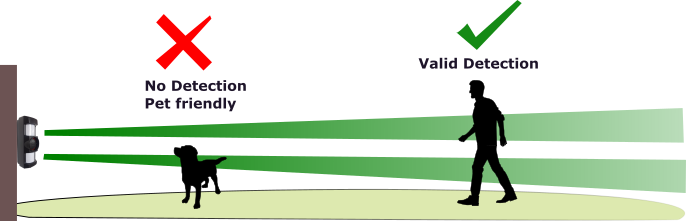

  1. Level Ground

Best detection range when ground is level. Mount the beam 0.8m – 1.2m above ground level.

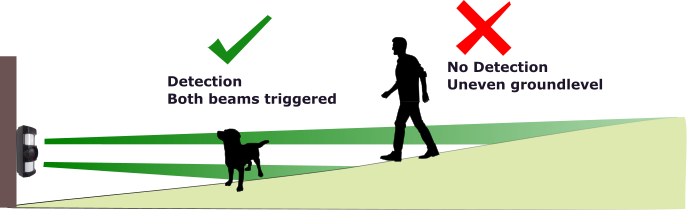

  1. Uphill Ground
Short detection range & possible false alarms when ground level slopes upward. Note: Mount the beam higher (1.2m – 1.4m) to assist with upward slope.

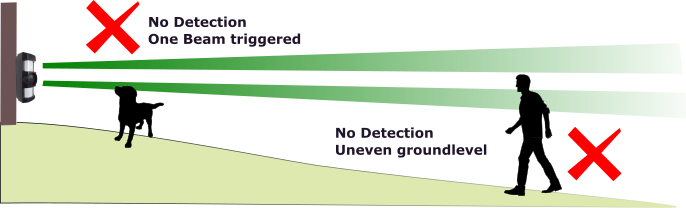

  1. Downhill Ground
Short detection range when ground slopes downward. Note: Mount the beam lower (0.6m – 0.8m) to assist with downward slope.
