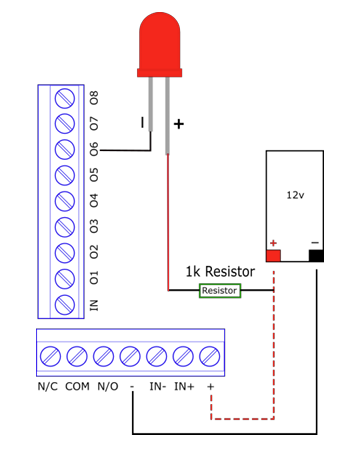

Below the wiring diagram for a status LED without a built-in resistor. Most Armed status LED indicators purchased from alarm retailers has a built-in resistor, the positive wire can then be connected to positive 12V without the resistor.
